ELECTRIC REMOTE CONTROLLED MONITOR (SL-26NE)
ELECTRIC REMOTE CONTROLLED MONITOR (SL-26NE)
The product is installed on the fire truck or on the incineration plant for dust removal, or on areas difficult for human access due to strong heat on fire such as the pier near the ships.
Open/close, rotation and flow pattern can be controlled from long distance to enable safe & efficient firefighting and prevention of spreading fire, and the product can protect people from danger. Additional equipments are all waterproof.

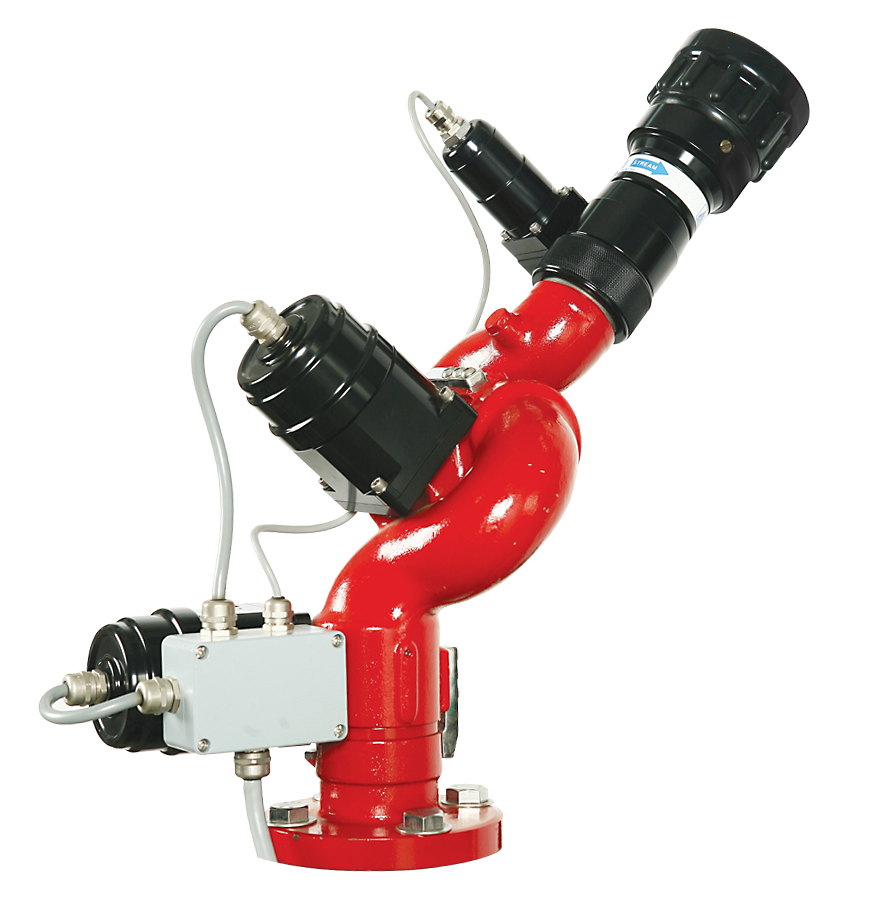

| SL-26NES (Small Flow) | |
| Size | Inlet : 2” / Outlet : BSP2” (M) |
| Flow Rate | Max. 300 GPM @ 7 Barg. |
| Vertical Movement | Up ~ Down : +80°~ -40° |
| Horizontal Movement | Maximum 340° |
| Material | Bronze or Aluminium |
| Remarks | It is mainly installed on fire truck's front bumper |

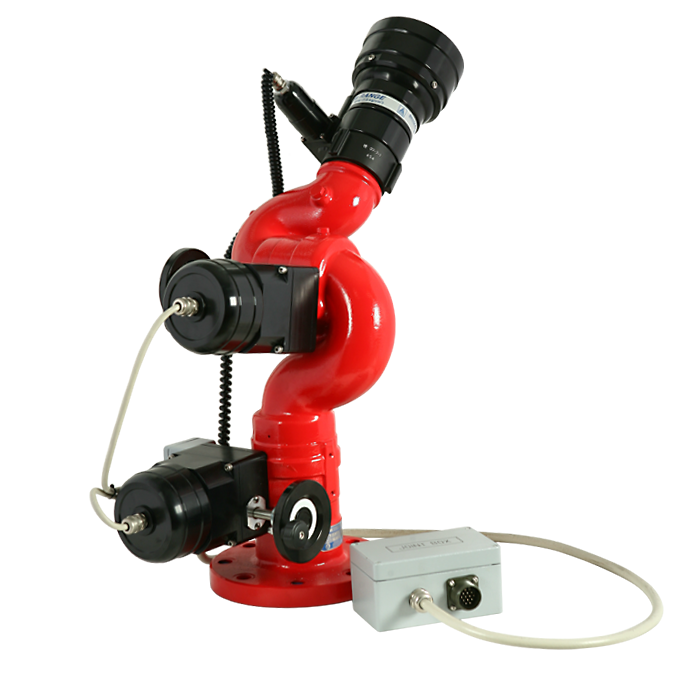

| SL-26NE (Medium Flow) | |
| Size | Inlet : 2-1/2”, 3”, 4” |
| FlowRate | Max. 1000 GPM@7Barg. |
| Vertical Movement | Up ~ Down: +80°~ -40° |
| Horizontal Movement | Maximum 340° |
| Material | Bronze or Aluminum |
| Remarks | For fire truck |
| SL-26HE (Medium Flow) | |
| Size | Inlet : 2-1/2”, 3”, 4” |
| Flow Rate | Max. 1000 GPM @ 7 Barg. |
| Vertical Movement | Up-Down: +80°~ -40° |
| Horizontal Movement | Maximum 340° |
| Material | Bronze or Aluminum |
| Remarks | For fire truck |
Model SL-16NEA

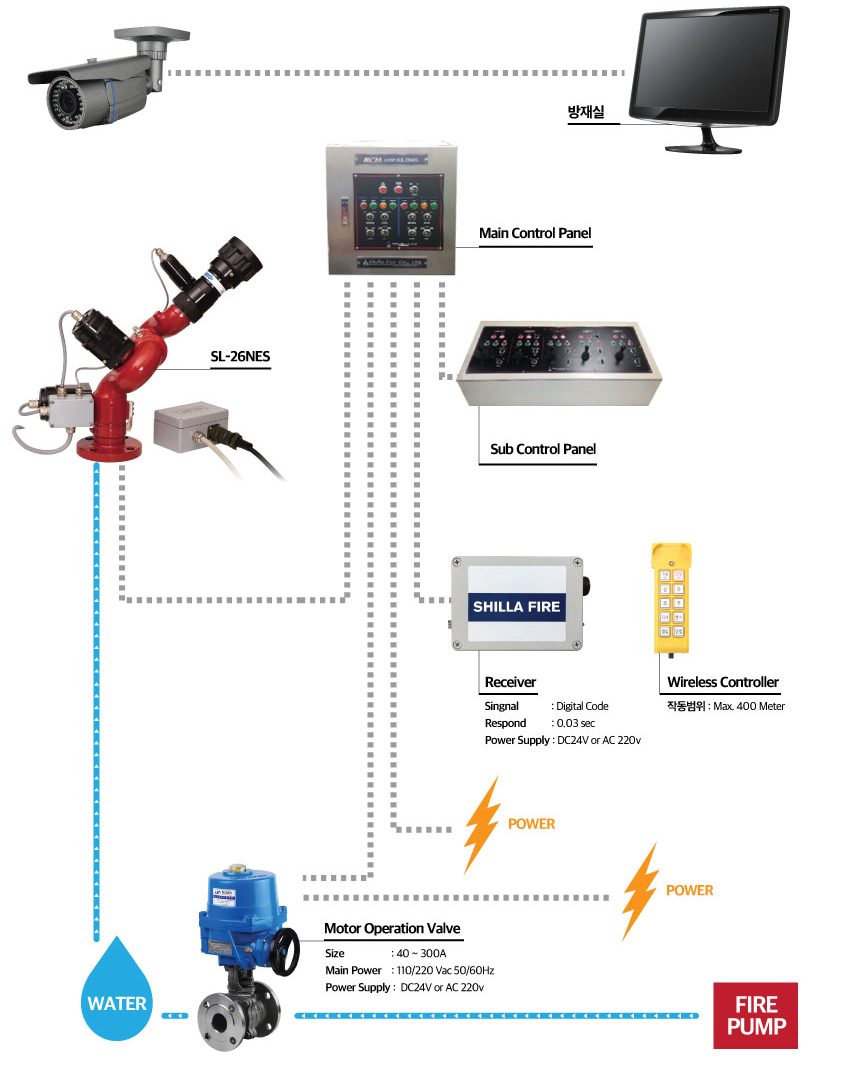

SYSTEM LAYOUT
