CYLINDER-AIR CUSHION
A lifesaving equipment is inflated with air generated from a cylinder containing compressed air, is also used to rescue the persons evacuating from a high-rise buildings in the event of fire or disastrous situation.
Material
Made of 100% Polyester, fire resistance, waterproof, highly tearing resistance,
and made with double seam structure inside cushion.
• Safe rescue from 5th floor to 20th floor of the building.
• Intuitive and quick assembly.
• Easy to carry with a comfortable handle.
Classification
ISO9001:2015 ISO14001:2015 EN ISO6941 DIN 53354:1981 DIN EN 20811 DIN EN ISO 13938-1:999 BS5438 DIN 14151-3
RESCUE AIR CUSHION SHOCKPROOF COMPRATIVE TABLE
1. Relative standard : DIN 1415~3
2. Comparison targets :
(1) Ground (without equipment) (2) Sponge (3) Life saving mat (4) Safety air mat (under 15 m)
3. Test date : 19, April 2017
4. Test dummy : 75 kg (Based on DIN 14151~3)
5. Test height : 16m Test tower (Based on DIN 14151~3)
♦ Used “g” unit of measure in this test, it is measure of acceleration of gravity by DIN 14151~4 {g: 9.81m/s²} it is different with {kg.m/s}
♦ Conversion table : 0.01 (v) = 1 (g) {Impulse sensor : Apply with SAE-J211}
Main Body
Composed of an air pillar as a structure and the canvas bag that covers the body. The main body of the mat has two air layers on top and bottom inside.
Main BodyComposed of an air pillar as a structure and the canvas bag that covers the body. The main body of the mat has two air layers on top and bottom inside.
Inlet Valve
The valve is connected to inject compressed air into the internal frame.
Inlet ValveThe valve is connected to inject compressed air into the internal frame.
Ventilation Valve
Deflate the air inside of the pillar after the situation is closed.
Ventilation ValveDeflate the air inside of the pillar after the situation is closed.
Over-Pressure Valve
Automatically controls air pressure inside the internal frame not to exceed a certain level (0.03 bar)
Over-Pressure ValveAutomatically controls air pressure inside the internal frame not to exceed a certain level (0.03 bar)

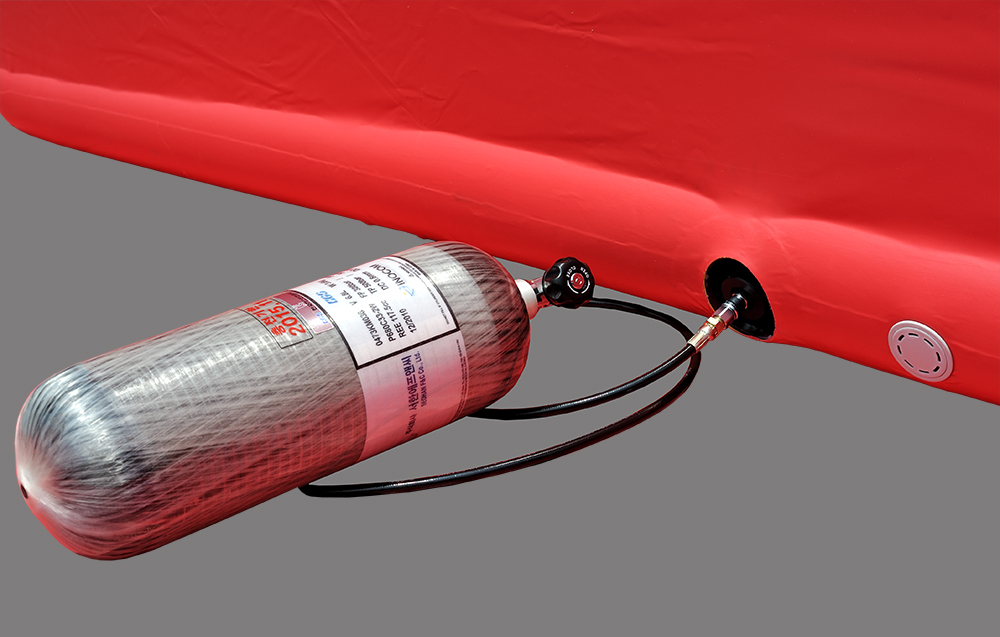

Cylinder
150 bar or 300 bar compressed air cylinder
Cylinder150 bar or 300 bar compressed air cylinder
CYLINDER SPECIFICATION
- High pressure composite type
- Fully wrapped carbon fiber composite with aluminum liner
- Capacity : 6.8 liter,
- Pressure : 300 Bar
- Approved : Korea Gas Safety Corp. & DOT
- Air capacity : 2040 liter
- Outer diameter : 159.7 mm
- Overall length : 524 mm
- Empty weight : 3.95 kg
- Certification : CE. TC UNISO
- Connection thread : 0.875-14 UNF M18X1.5
| Model | SDF-50 | SDF-70 | SDF-100 | SDF-150 | SDF-200 |
| Chamber | Two chambers | ||||
| Size (m) | 4.0 × 4.0 × 2.0 | 4.5 × 6.0 × 2.5 | 5.0 × 7.0 × 2.5 | 6.0 × 8.0 × 3.0 | 7.0 × 10.0 × 3.0 |
| Allowable Height | under 15 m | 21 m | 30 m | 45 m | 60 m |
| Inflation Time | 40 sec. | 45 sec. | 60 sec. | 80 sec. | 100 sec. |
| Reinflation | 17 sec. | 21 sec. | 25 sec. | 35 sec. | 45 sec. |
| Required Cylinder | 2 pcs | 2 pcs | 3 pcs | 4 pcs | 5 pcs |
| Weight | 85 kg | 103 kg | 110 kg | 168 kg | 220 kg |
| Shipment Measurement (cm) | 130 × 70 × 50 | 130 × 80 × 50 | 130 × 80 × 50 | 150 × 80 × 50 | 140 × 90 × 60 |
| Cylinder Specification | Cylinder 6.8 Liter, 300 Bar | ||||
HOW TO FOLD
Precautions
One person should make a jump at a time.
The next evacuator should try a jump after the mat recovers its original shape.
Installation is available only at the places with the supply of commercial or emergency electricity.
The safety air cushion should be installed at the location where the evacuator could fall on the center of the mat.(Especially, choose the location carefully at night due to bad visibility of an evacuator.)
