DEVICES FOR ELECTRIC REMOTE CONTROL MONITOR

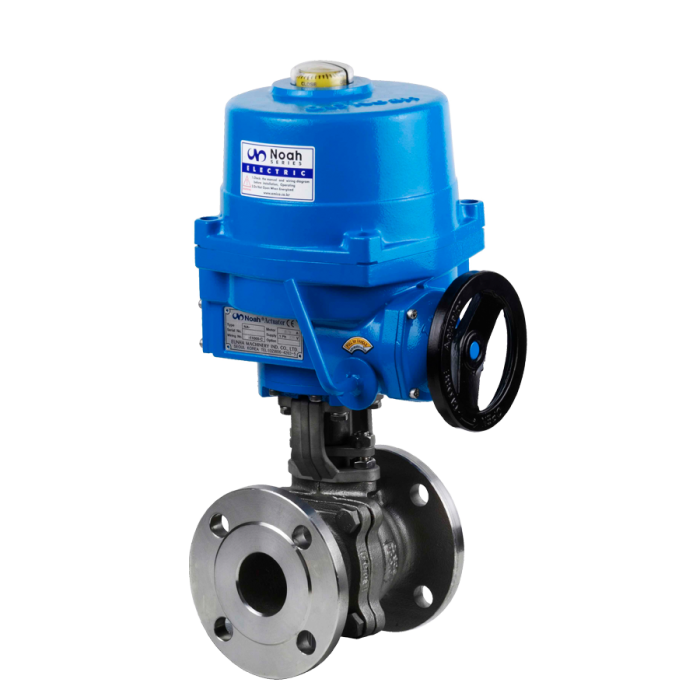

MOTOR OPERATION VALVE
The valve control the flow in the pipe, and the product is applied not only for firefighting, but also in all industrial facilities such as the power plant, steelworks, petrochemical, district heating, etc. Product types are ball valve and butterfly valve, etc. The area with risk of explosion is used with the explosion-proof type applied with its type regulator, and in general regions, non-explosion proof valve is used.
SPECIFICATION MOTOR OPERATION VALVE | ||
| TYPE | BALL VALVE | BUTTERFLY VALVE |
| Size | 40 ~ 300A | 80 ~ 600A |
| Ambient Temperature | -20°C ~ +70°C , 150°C/1hr (Option : -60°C, 400°C/1hr) | |
| Main Power | 110/220V AC 50/60Hz, 380/440V AC 50/60Hz | |
| Torque Switches | 2 Open / Close (Except NA006, NA009) | |
| Limit Switches | 2 Open / Close, 250 VAC 15A Rating | |
| Stall Protection | Thermal Protection (Open 150) | |
| Indicator | Continuous Position Indicator | |
| Manual Override | Hand / Auto Declutching Mechanism | |
| Self Locking | Provided by Means of Worm Gearing | |
| Space Heater | 20W | |
| Cable Entries | 1. Standard : 2-PF 3/4” 2. Option : 2-M20 Pitch 1.5, 2-NPT 3/4” | |
| Lubrication | Shell Gadus S2 V220 2 | |
| Material | Aluminium, Anodizing, Polyester Power Coating (TGIC-FREE) | |
| Explosion Proof | Ex d IIB-T4, IP68 | |
| Remarks | ||

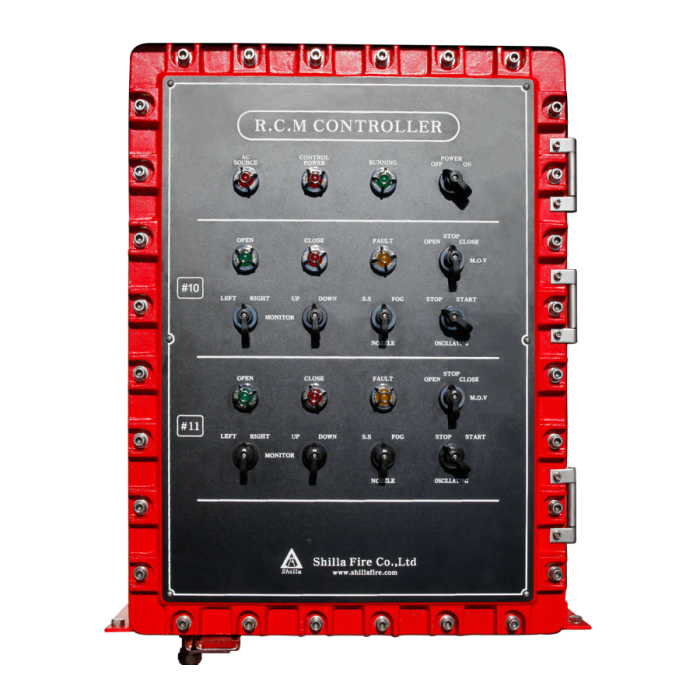

Main Control Panel
The panel is manufactured in the explosion-proof aluminium diecasting box to use even in areas with hazardous area such as petrochemical plants.
| Function |
|
| Option |
|
| Power Supply |
|
| Pressure-resistance & Explosion-proof Grade |
|
| Size |
|
| Material |
|
Terminal Box (Joint Box)
Joint box is installed between the Monitor and the Main Controller.
| Pressure-resistance & Explosion-proof Grade |
|
| Size |
|
| Material |
|

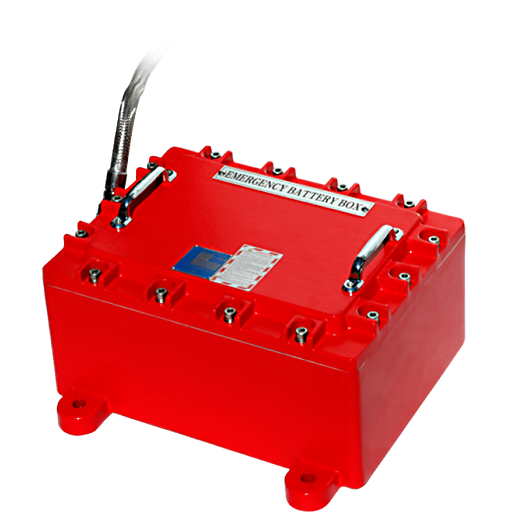

Emergency Battery (Option)
Emergency Battery(Option)
| Pressure-resistance & Explosion-proof Grade |
|
| Size |
|
| Material |
|

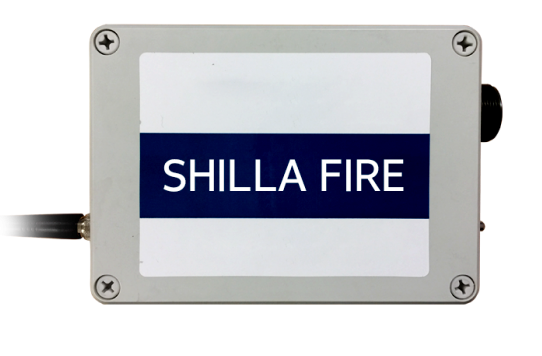

Wireless Recevier (Option)
Recevier
| Signal |
|
| Respond |
|
| At Rest Current |
|
| Operating TemperatureRange |
|
| Material |
|

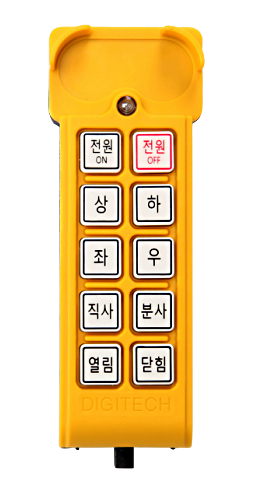

Wireless Controller (Option)
Wireless Controller
| Function |
|
| Monitor |
|
| Nozzle |
|
| Operating Distance |
|
ELECTRIC REMOTE CONTROLLED MONITOR ACCESSORIES (NONE-EXPLISION PROOF)
Main Control Panel
Panel is made of the explosion proof aluminum diecasting box can be used on non-hazardous areas.
| Function |
|
| Option |
|
| Size |
|
| Material |
|

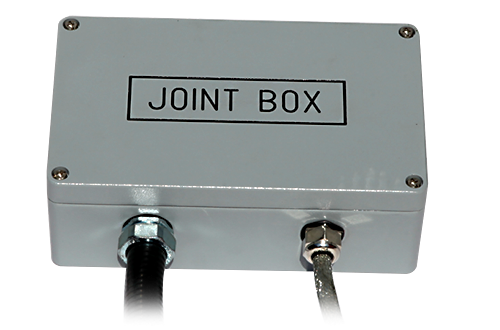

Joint Box
Joint Box
It is lightweight, strong durability and consists of a waterproof terminal and an aluminum die-casting box which internal units can be protected.
| Size |
|
| Material |
|

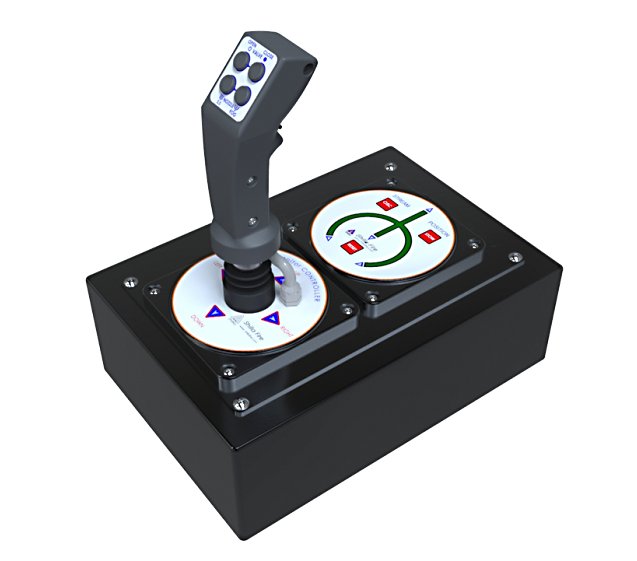

Control Panel (Option)
Sub Control Panel (Option)
It is a small-size and lightweight to extend the line and operate the monitor through the Main Control Panel when the location of the fire point is difficult to find out.
| Size |
|
| Material |
|
