The manual operation monitor can be classified into gear-type, lever-type and rope-type that are used for tower buildings. Most of monitors are made of bronze, aluminum and cast iron. Aluminum made is light-weighted, bronze with excellent corrosion-resistance and aluminum/bronze is used for high-strength pressure and sea water.

Various flows are possible to use from the low flow of 200GPM (760LPM) to high-flow 2000GPM (7600LPM). There is built-in valve for (integral-type) open/close and standard type that requires the valve mounting separately.

MODEL	OPERATING RANGE	INLET SIZE	MATERIAL	REMARKS

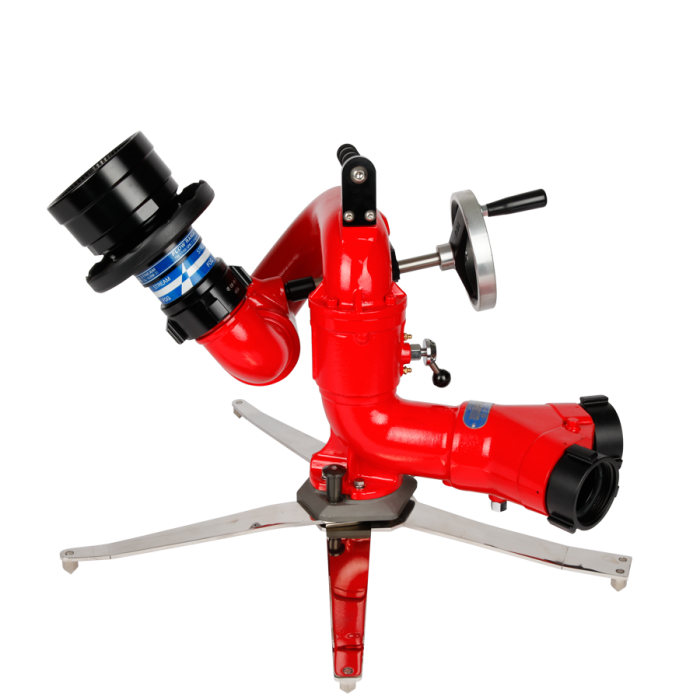

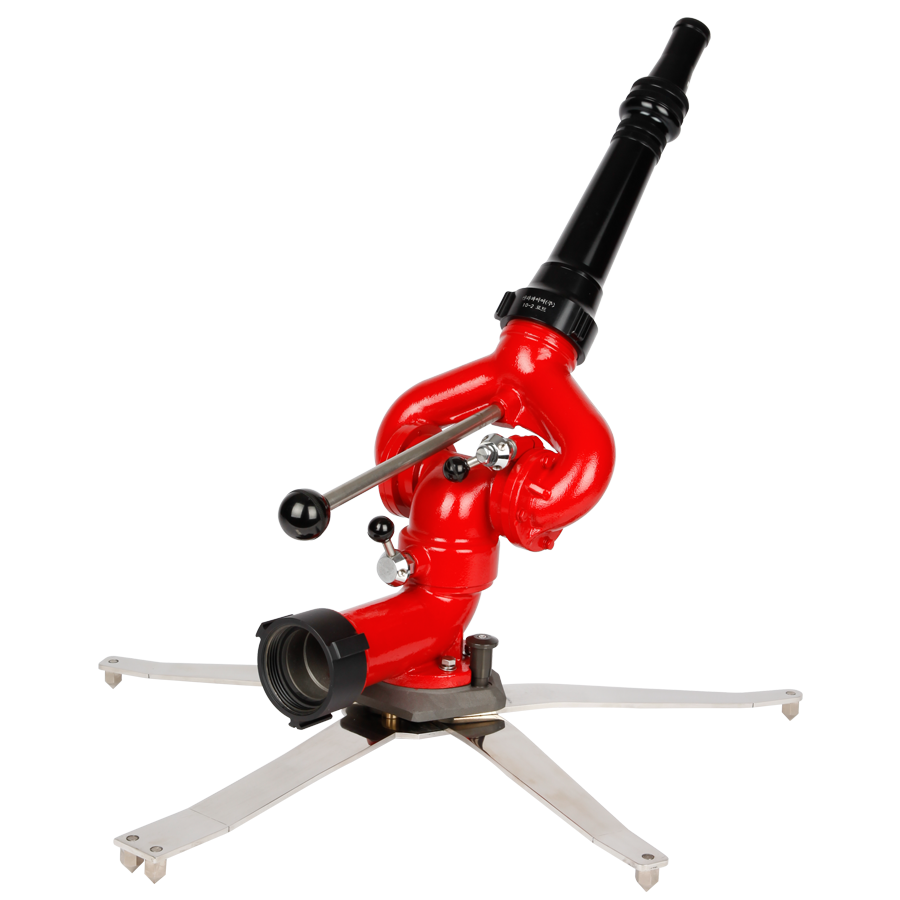

SL-20S	Upwards +80° Downwards +15°	NH 2-1/2" Female	Aluminum or Bronze	Stainless steel foldable leg
SL-21A		Two of 2-1/2" Female	Aluminum	Stainless steel foldable leg
SL-26HM		ANSI #150 Flange 2-1/2" / 3" / 4"	Aluminum or Bronze	Flange fixed

MODEL	OPERATING RANGE	INLET SIZE	MATERIAL	REMARKS

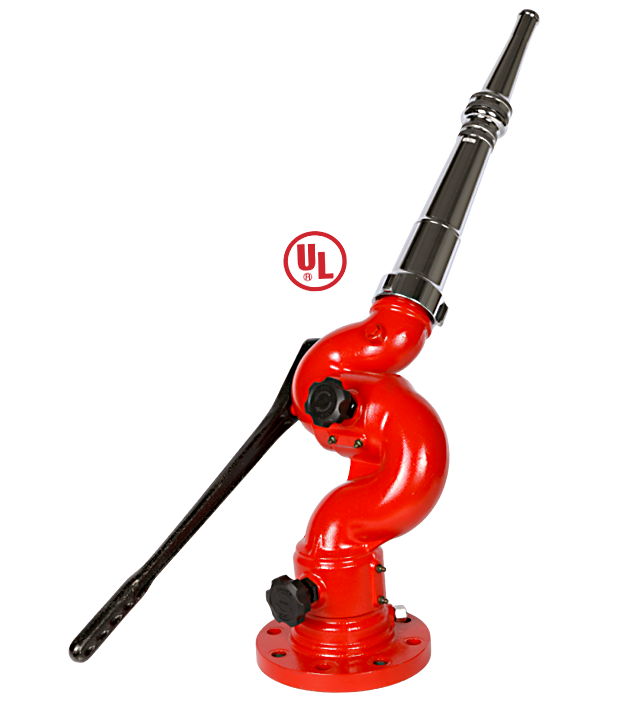

SL-23N	Upwards +80° Downwards +15°	ANSI #150 Flange 2-1/2" / 3" / 4"	Aluminum or Bronze

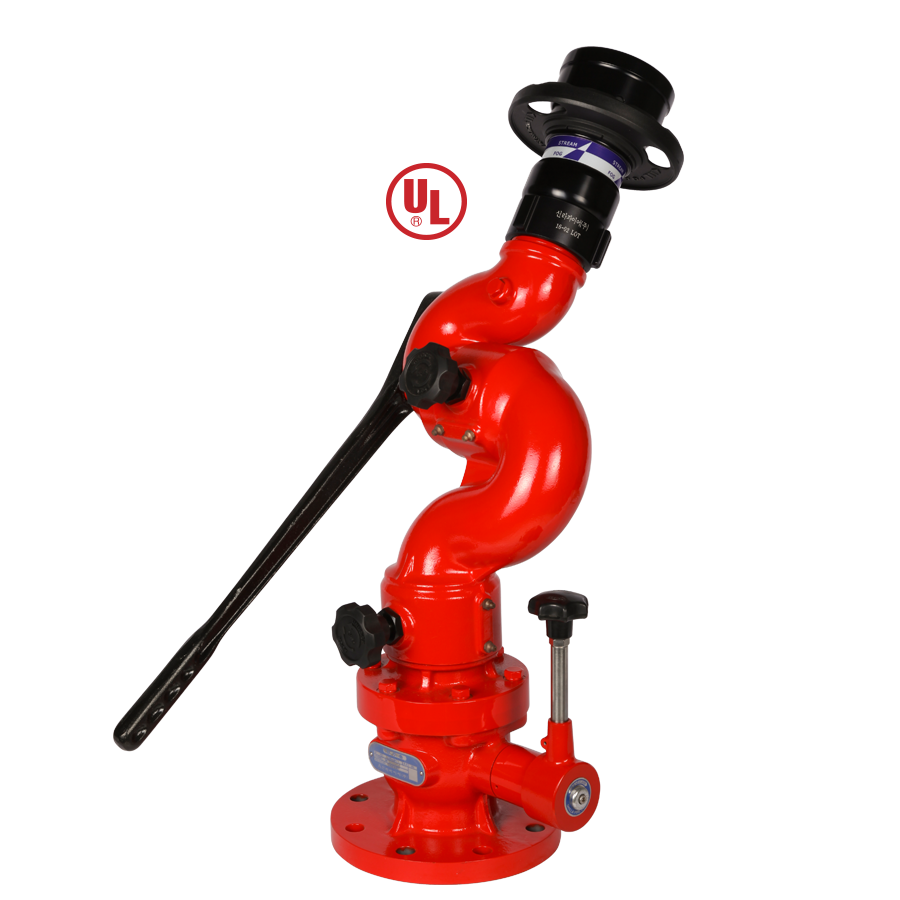

SL-23NB		ANSI #150 Flange 2-1/2" / 3" / 4"	Aluminum or Bronze	c/w Isolation Valve

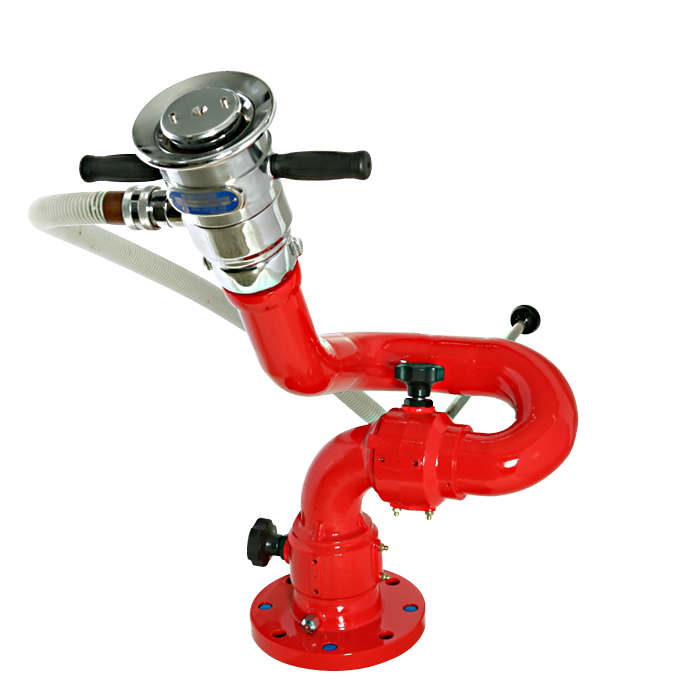

SL-23WJ		ANSI #150 Flange 2-1/2" / 3" / 4"	Stainless Steel, Aluminum + Bronze	FM Approved

MODEL	OPERATING RANGE	INLET SIZE	MATERIAL	REMARKS

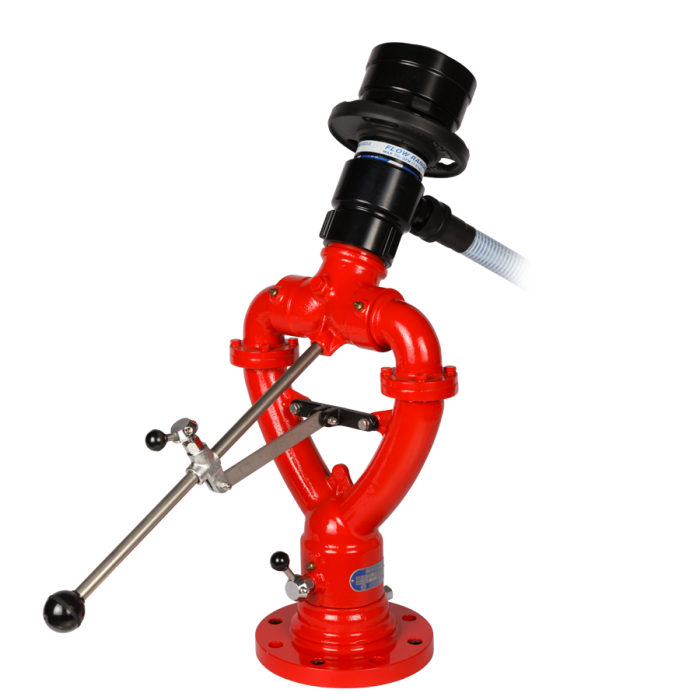

SL-23A	Upwards +80° Downwards +15°	ANSI #150 Flange 2-1/2" / 3" / 4"	Aluminum, Bronze or Cast Iron

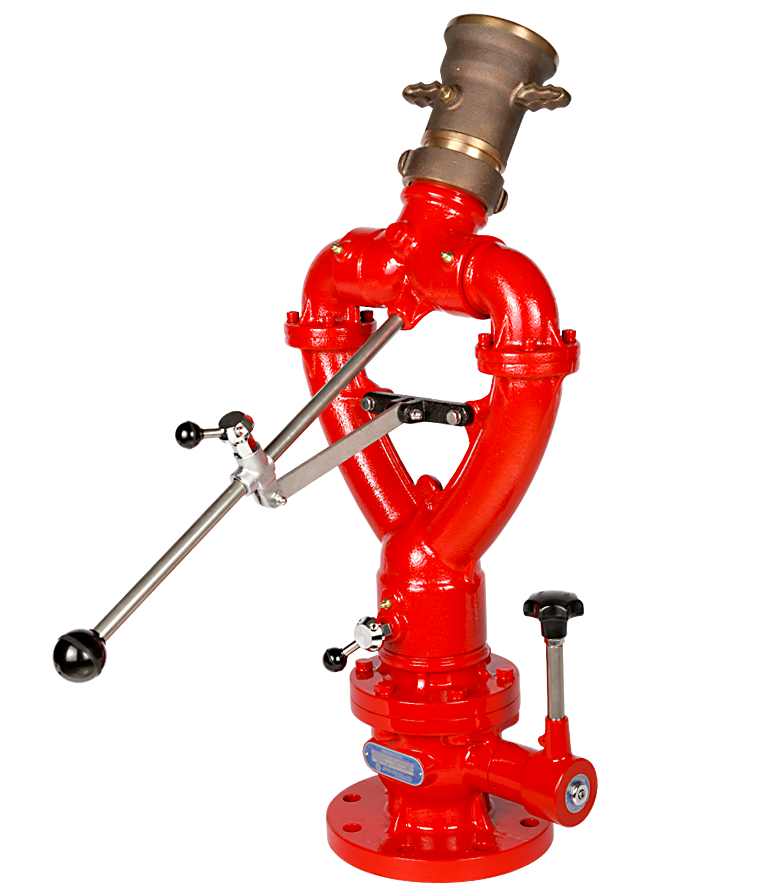

SL-23AB		ANSI #150 Flange 2-1/2" / 3" / 4"	Aluminum, Bronze or Cast Iron	c/w Isolation Valve

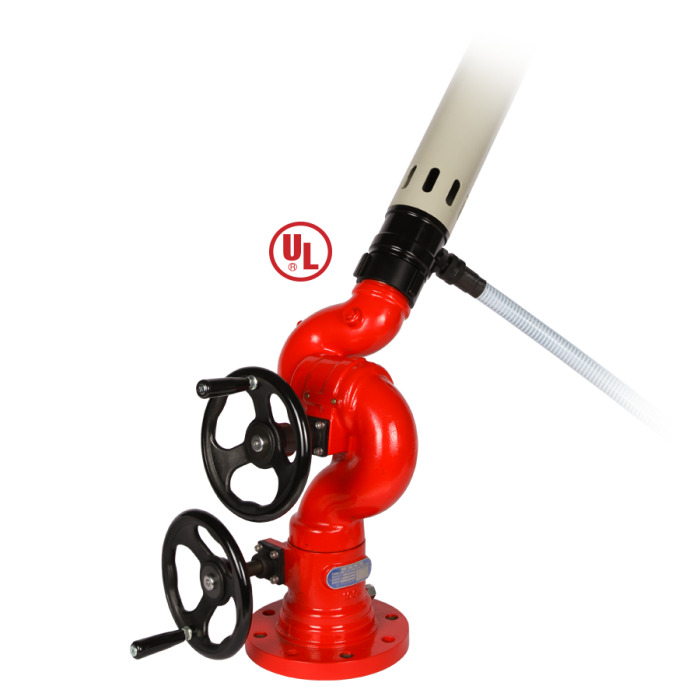

SL-26N		ANSI #150 Flange 2-1/2" / 3" / 4"	Aluminum or Bronze

MODEL	OPERATING RANGE	INLET SIZE	MATERIAL	REMARKS

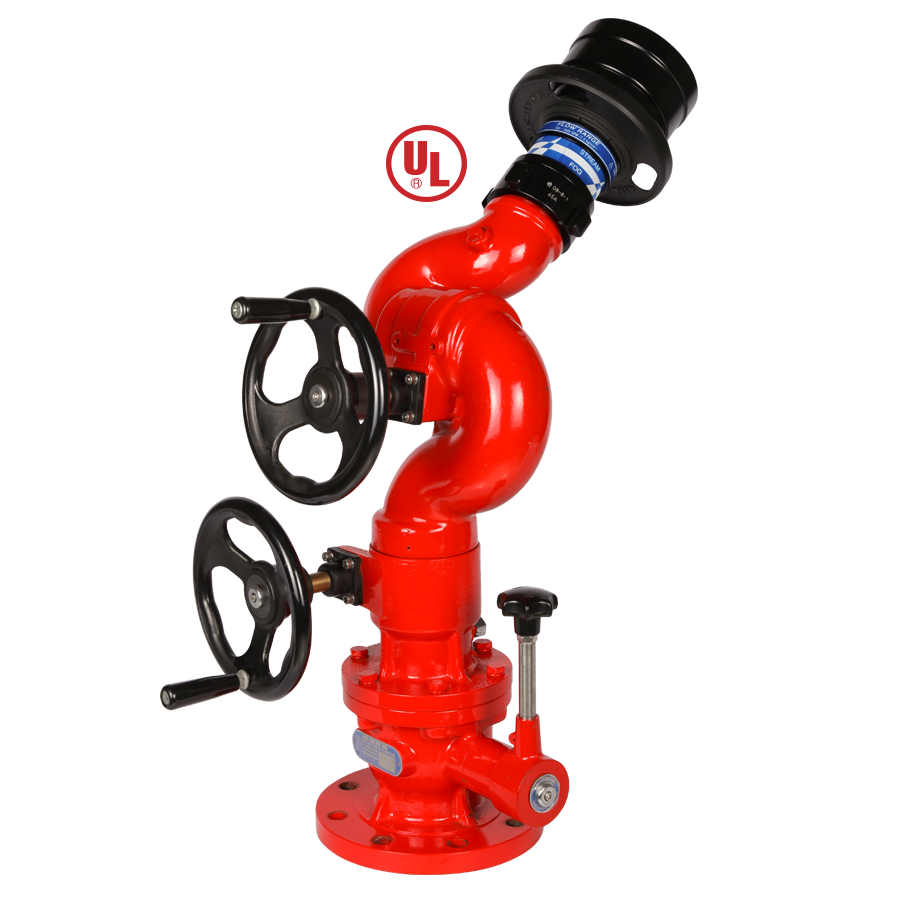

SL-26NB	Upwards +80° Downwards +15°	ANSI #150 Flange 2-1/2" / 3" / 4"	Aluminum or Bronze	c/w Isolation Valve

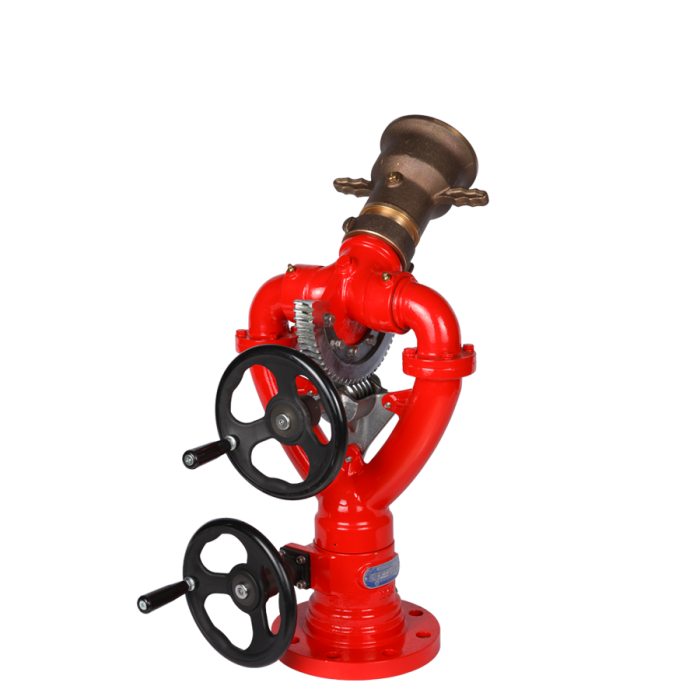

SL-26A		ANSI #150 Flange 2-1/2" / 3" / 4"	Bronze or Cast Iron

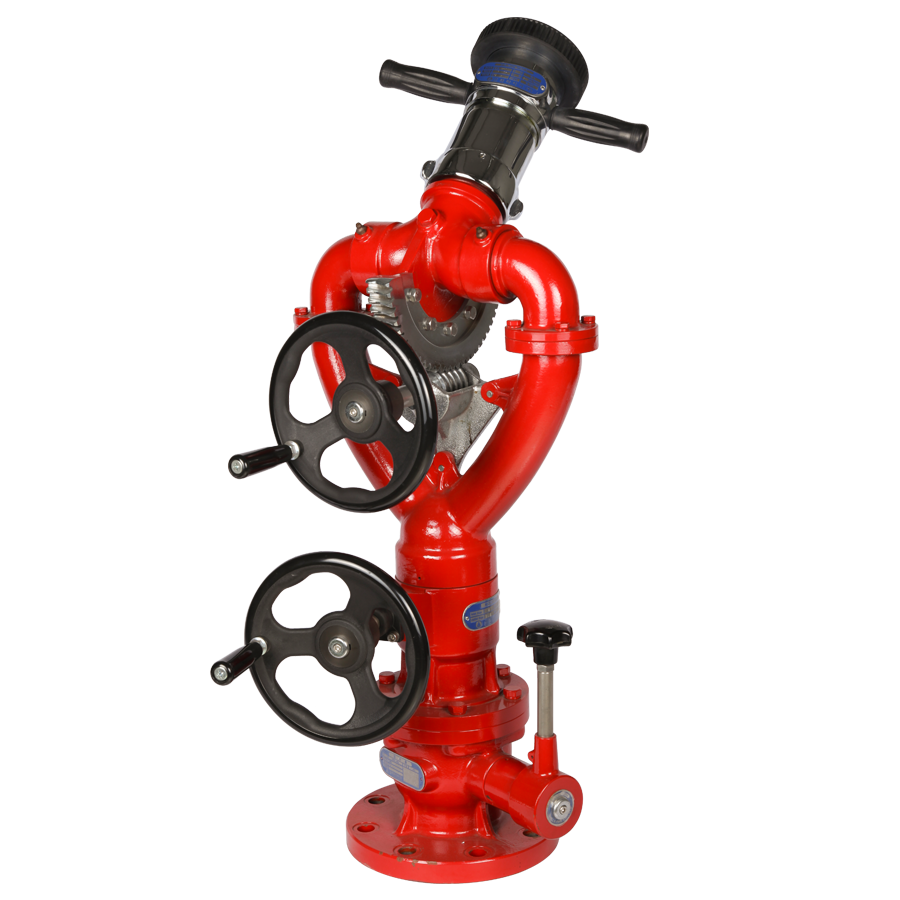

SL-26AB		ANSI #150 Flange 2-1/2" / 3" / 4"	Bronze or Cast Iron	c/w Isolation Valve

MODEL	OPERATING RANGE	INLET SIZE	MATERIAL	REMARKS
SL-27A	Upwards +80° Downwards +15°	ANSI #150 Flange 4" or 6"	Aluminum or Bronze
SL-27B		ANSI #150 Flange 4" or 6"	Aluminum or Bronze	c/w Isolation Valve
SL-27A-4		ANSI #150 Flange 4"	Aluminum / Bronze	UL Listed
SL-27B-6		ANSI #150 Flange 6"	Aluminum / Bronze	UL Listed
