The order of this page : (1) Post indicator with valves
(2) UL listed fire valves
(3) Y type valves
(4) Relief valves
POST INDICATOR WITH GATE VALVE
Post Indicator is the indicator-type control valve installed on the underground firefighting water pipe, and the post has a window to easily verify the OPEN / CLOSE
state of the valve. Field installation is very simple and economic. Lever-type, Gear-type and Hatch-type of valves are available.
LEVER TYPE POST (SL-701L)
Application : Valve 4” ~ 24”
Length : Order specified
Material : Cast Iron & Carbon Steel
Option : Tamper switch, KFI certified.
GEAR TYPE POST (SL-701G)
Application : Valve 4” ~ 24”
Length : Order specified
Material : Cast Iron & Carbon Steel
Option : Tamper switch, KFI certified.
HATCH TYPE POST (SL-701H)
Application : Valve 4” ~ 14”
Length : Order specified
Material : Cast Iron & Carbon Steel
Option : Tamper switch

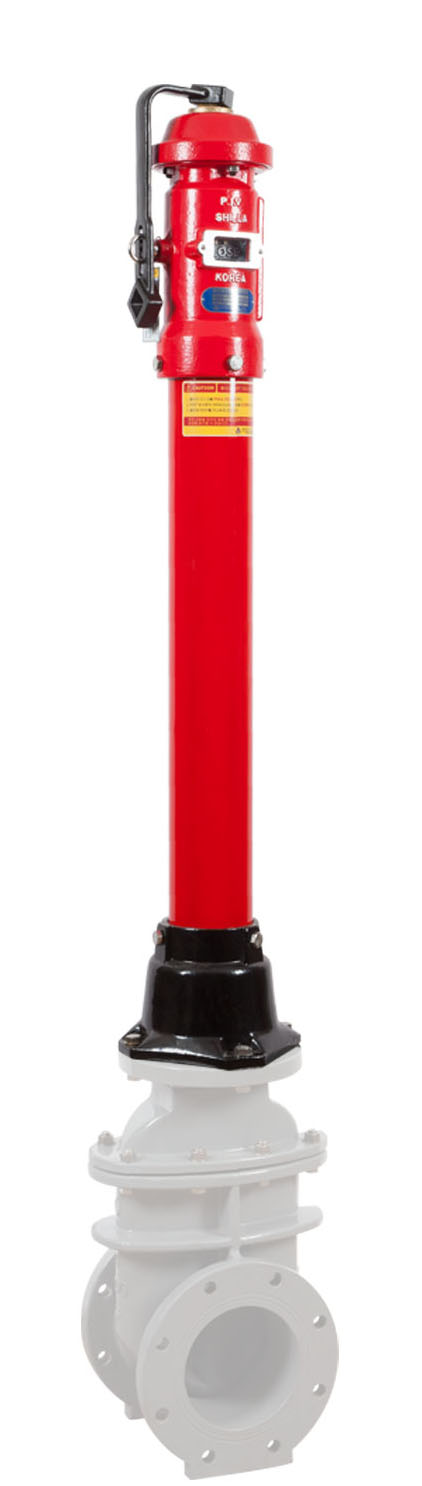

SL-701L
The L-type square lever mounted on top is
used for Open/Close. OPEN state is maintained
normally, but when requiring maintenance,
the mounted L-type lever is inserted into
the square wrench part to CLOSE.
It is manufactured to insert the L-type lever
to match the upper square wrench part and
side EYE Bolt for sealing.

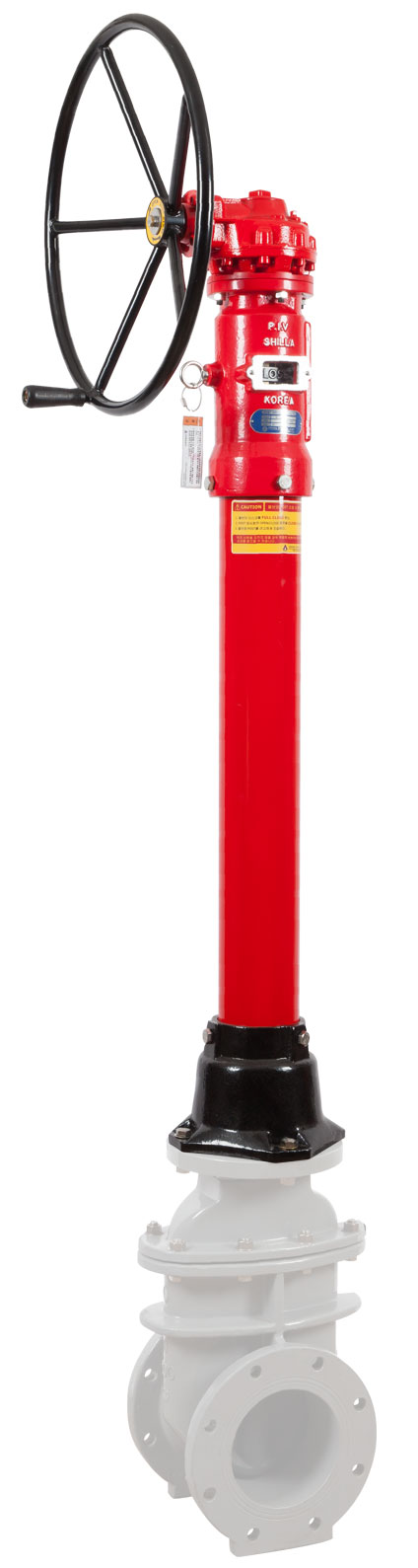

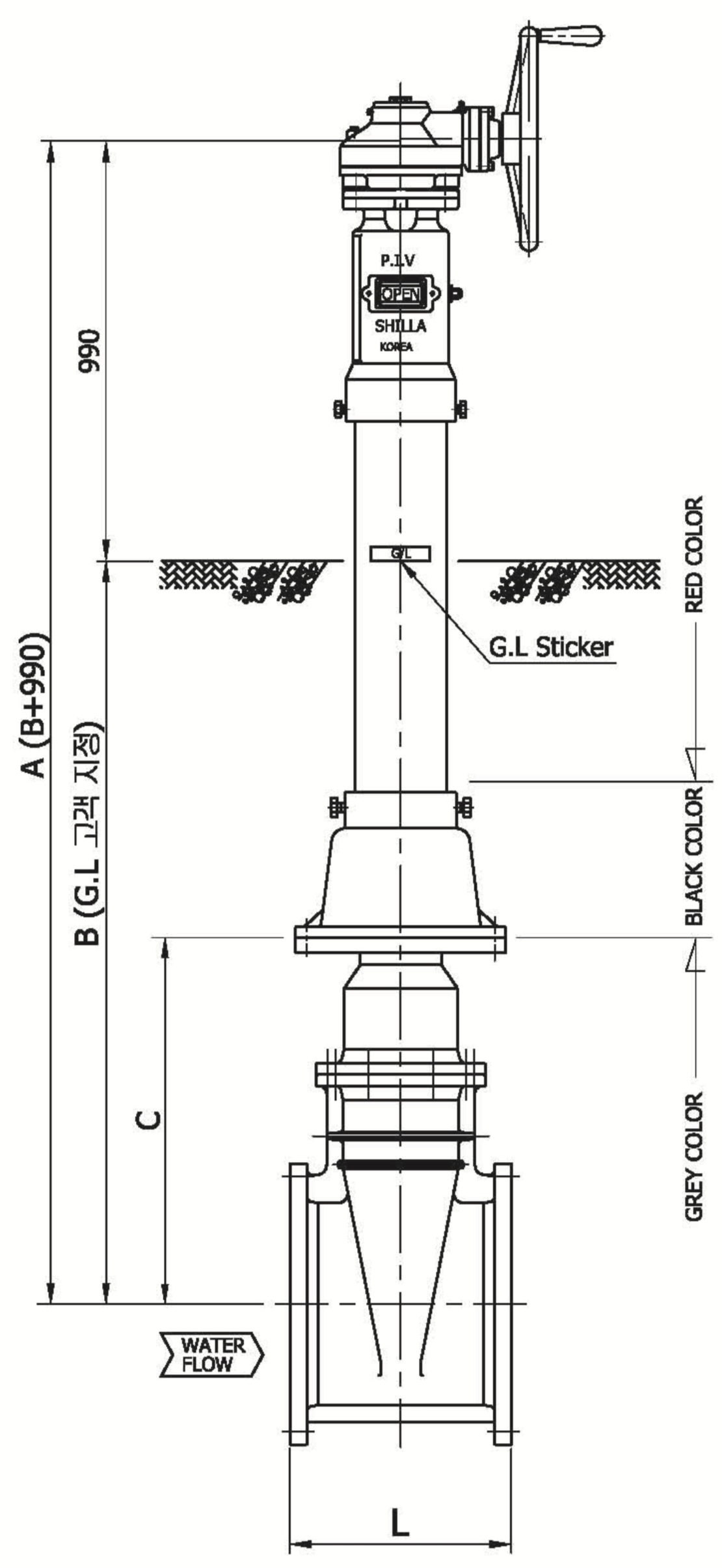

SL-701G
Reduction gear is applied for convenient Open/Close.
The method of use is same as the lever-type,
and instead of the lever, the gear wheel is turned for
Open/Close, so the operation is smooth for convenience
in use. It is appropriate for use on large-size valve or
cast steel valve of 14 inches or higher with great load
from the water pressure.

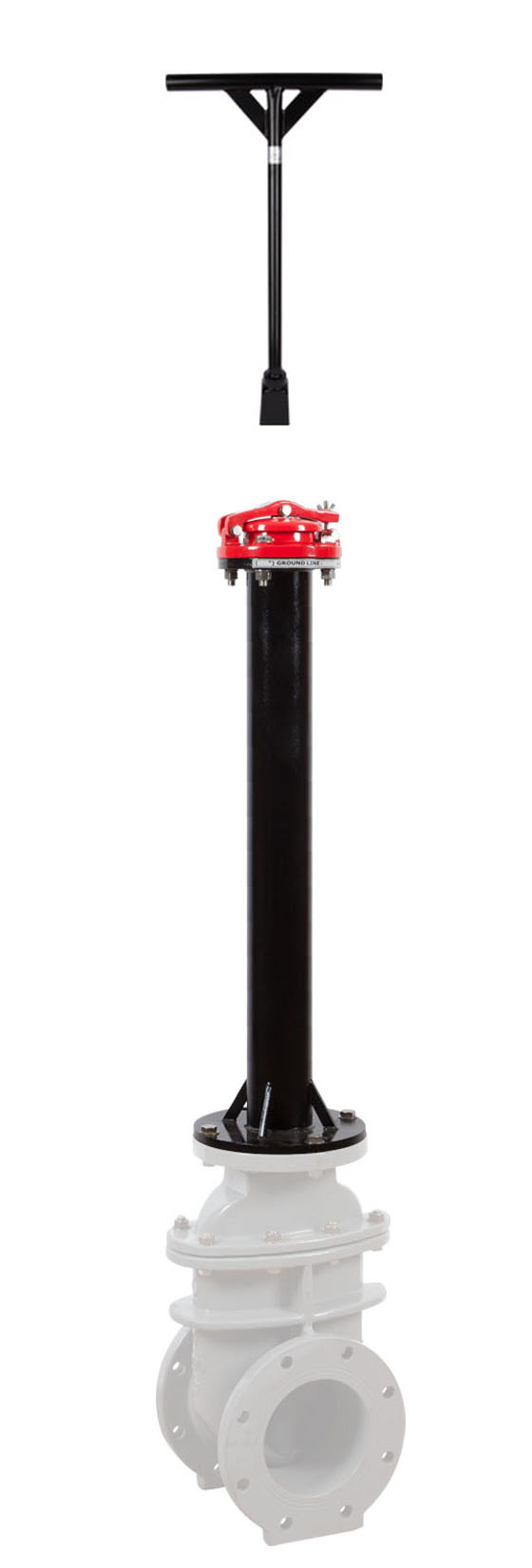

SL-701H
When installing in the garden or roadside,
it can be installed in coincidence with the
ground, and the hatch cover is opened
and T-handle is used for Open/Close.
The method of use is same as the lever-type except for opening and closing the
L-lever with T-handle. There is no protruding part on the upper side, and the cover can be closed and nut fastened
after use.

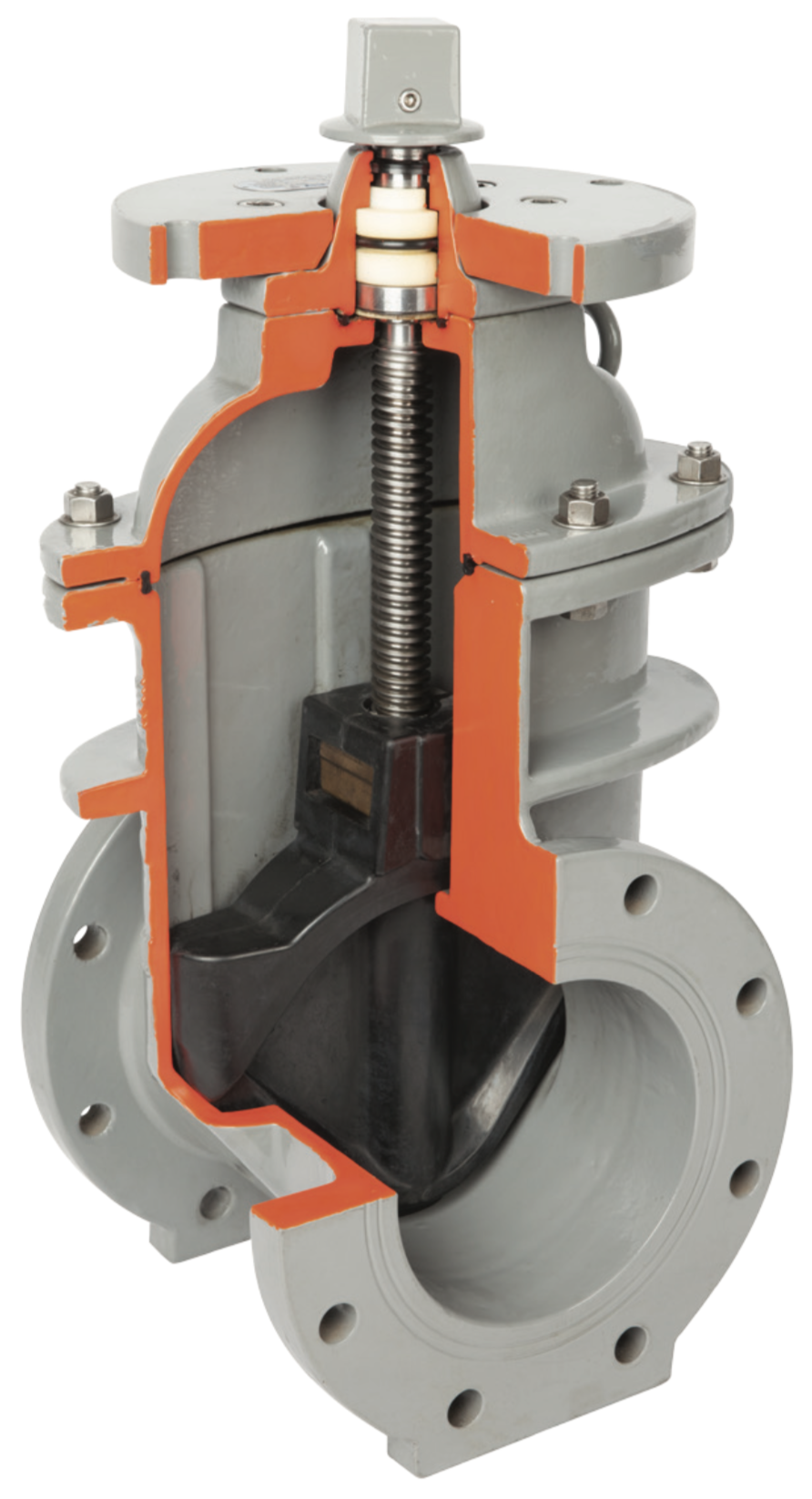

GATE VALVE (SL-701V)
The main body of the valve for Post Indicator is in ductile material to have the inside and outside with epoxy resin powder
coating to have excellent body strength and corrosion-resistance. The Disk is in ductile material with frontal rubber lining
forming to be applied with two-way sealing function for excellent corrosion-resistance and prevention of leakage.

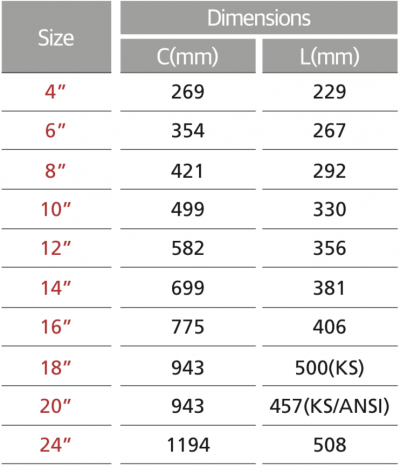

GATE VALVE
Size : 4” ~ 24” ANSI #150 F.F FLANGE
Type : Non-Rising Type
Material : Body – Ductile iron (GCD 450)
Disc – Ductile iron (GCD 450) + EPDM
Painting : Epoxy Resin Powder (in/out side)
Test Pressure : 4” ~ 12” — 2.4MPa(Body)
14” ~ 24” — 2.1MPa(Body)
Option : Cast Steel Valve
POST & VALVE Assembly Method
1. Check whether the valve disk is completely open.
2. The square wrench part on the top of the post is turned
counter-clockwise to check whether the open indication
of the winder is in the center.
3. The square wrench on the bottom of the post is inserted into
the upper part of the axis on the valve, and the flange hole
of the post and the Bolt Hole of the valve base are
matched to be fastened with the Bolt.
* POST is basically separated with the VALVE for supply.
TAMPER SWITCH mount-type is completely opened with the valve,
and the Switch is open contact state to be supplied.

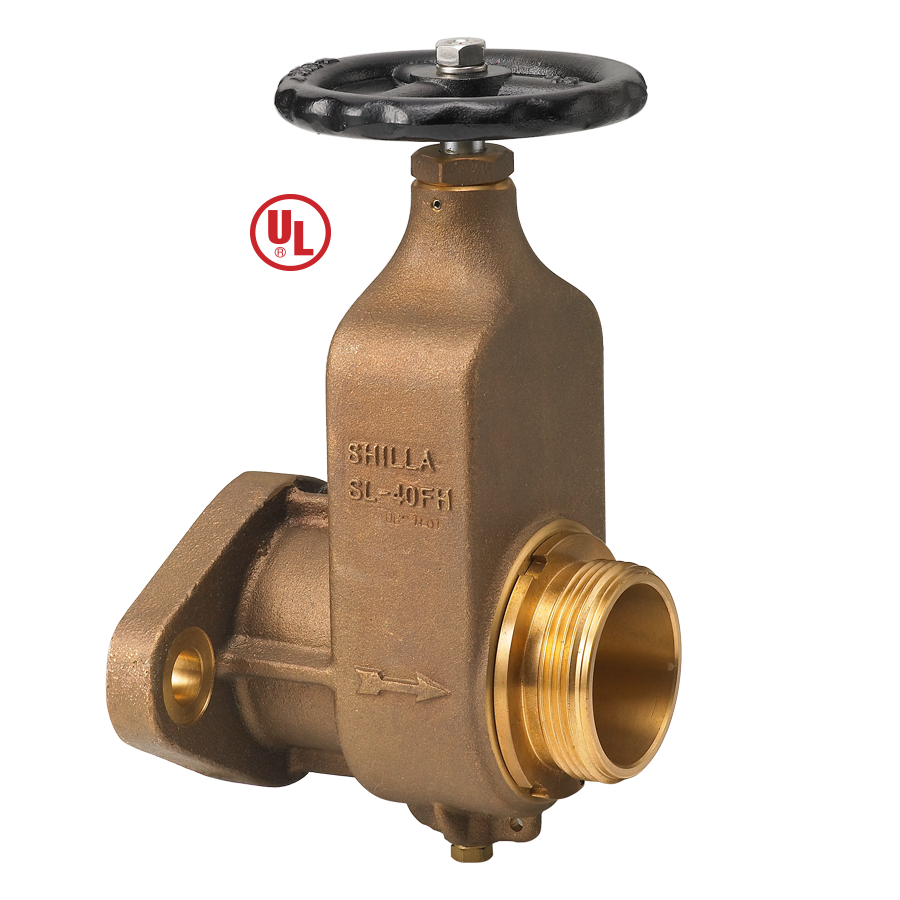

The valve is installed on the fire water line such as hydrants to be connected with fire hose for use. There is no pressure loss and easy to use. Various materials and connections are provided to enable to use according to the site conditions.
