DESCENDING LIFE LINE WALL SUPPOTERS
Description

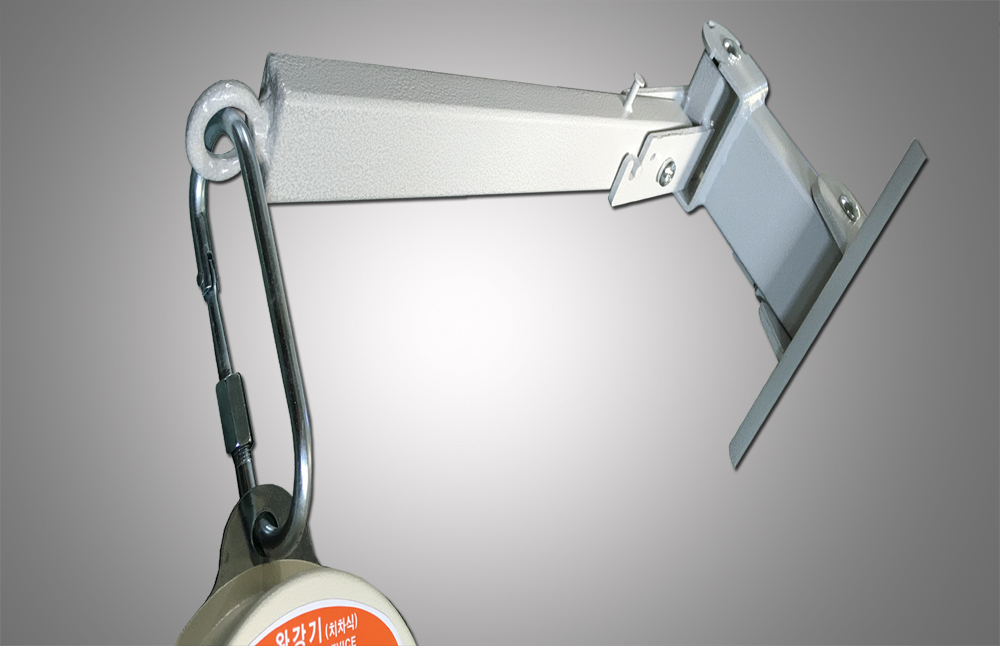

The device is designed to be fixed on the wall with an exit and the main body of descending life line or handy descending life line is locked into the hanger for safe evacuation.
It is a hanger to hook life line when people need to escape from a building. It can be installed any column or wall. In ordinary day a product is fold down for storage, but when necessary a person must follow the direction to install to escape.
- Korea Fire Institute Approved

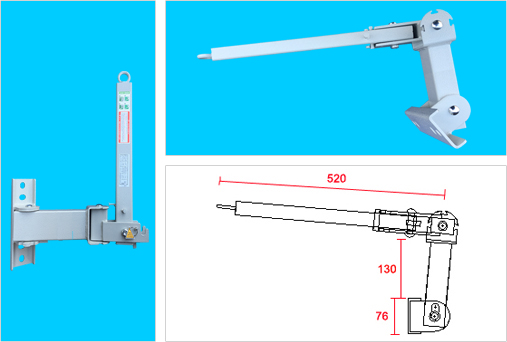

Type Approval No.: Hanger 13-1-1
| Division | Data |
| Weight | 4.3 kg |
| Type | One-fold, interior wall mount |
| Material | SS 400 |
| Design Load | 500 kg |
| Working Load | 150 kg |
| Approved & Inspected | Korea Fire Institute Approved |

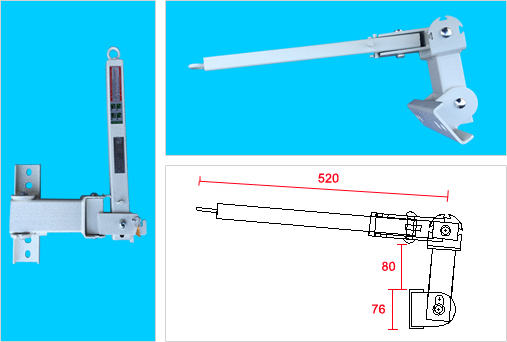

Type Approval No.: Hanger 13-2-1
| Division | Data |
| Weight | 5.9kg |
| Type | Two-fold, interior wall mount |
| Material | SS 400 |
| Design Load | 500 kg |
| Working Load | 150 kg |
| Approved & Inspected | Korea Fire Institute Approved |

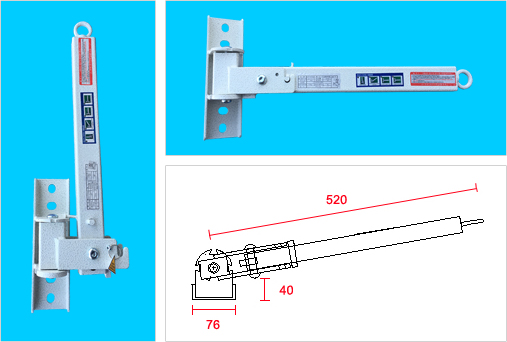

Type Approval No.: Hanger 13-2-2
| Division | Data |
| Weight | 6.3 kg |
| Type | One-fold, interior wall mount |
| Material | SS 400 |
| Design Load | 500 kg |
| Working Load | 150 kg |
| Approved & Inspected | Korea Fire Institute Approved |

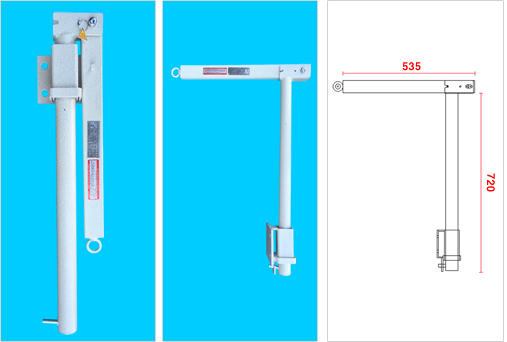

Type Approval No.: Hanger 13-5
A
A
B
B
| Division | Data |
| Weight | 0.97 kg |
| Type | Exterior wall mount |
| Material | Stainless steel 304 Grade |
| Design Load | 500 kg |
| Working Load | 150 kg |
| Approved & Inspected | Korea Fire Institute Approved |
