VERTICAL DESCENT RESCUE EQUIPMENT
(SPIRAL TUNNEL ESCAPE CHUTE)
The light-weighted lifesaving equipment is easy and fast to escape through spiral type of tunnel and install in the event of fire of disaster.
APPLICATION
Hotels, School, Hospital, High Rise Buildings, Fire fighting ladder vehicle, etc.
•K.F.I (Korea Fire Institute) approved
•Fabric : Polyester, heatproof and fire resistance
PRECAUTIONS
- One person should make a jump at a time.
Recommendation
- The next person should evacuate after making sure that the previous evacuator lands safely.
SPECIFICATION | |
Division | Data |
Chute storage box | 880 mm X 500 mm X 960 mm |
| Escapee entrance (steel pipe) | 700 x 700 mm |
Length of descent bag | 4.5 ~ 60 meters |
Descent time | 3 ~ 4 meters per second |
Descent interval | 4 ~ 5 second |
Inspections | KFI (Korea Fire Institute) approved |
SPIRAL TUNNEL ESCAPE CHUTE
- Material : Polyester heatproof and fire resistance fabric.
- Length of the Chute is measured from the ground to the window frame of building.
- Length of chute : Order made is available.
- Classification :
ISO9001:2015 ISO14001:2015 EN ISO6941 DIN 53354:1981 DIN EN 20811 DIN EN ISO 13938-1:999 BS5438 DIN 14151-3.
Main Frame Work at ground
Descent bag is kept inside the frame in normal times, but the frame supports the descent bag securely when in use.
Main Frame Work at groundDescent bag is kept inside the frame in normal times, but the frame supports the descent bag securely when in use.
Escapee Entrance
The frame serves as the entry on top of the fixing frame for descending.
Escapee EntranceThe frame serves as the entry on top of the fixing frame for descending.
Escapee Exit at Ground
A canvas bag type installed in a spiral composition. It is exit.
Escapee Exit at GroundA canvas bag type installed in a spiral composition. It is exit.
Storage Box
Store in this box when not in use.
Storage BoxStore in this box when not in use.

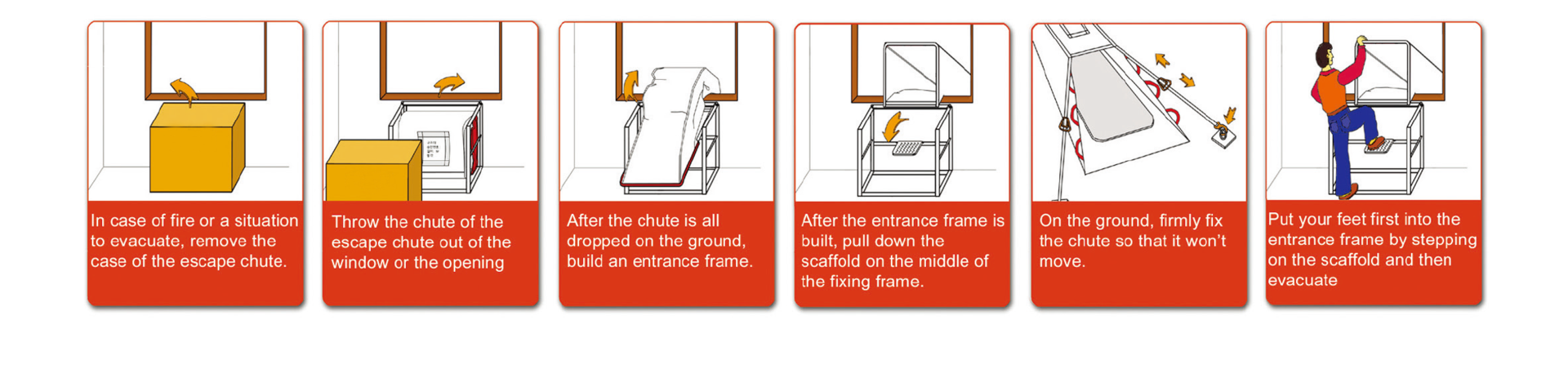

How to use
