FOAM MAKER

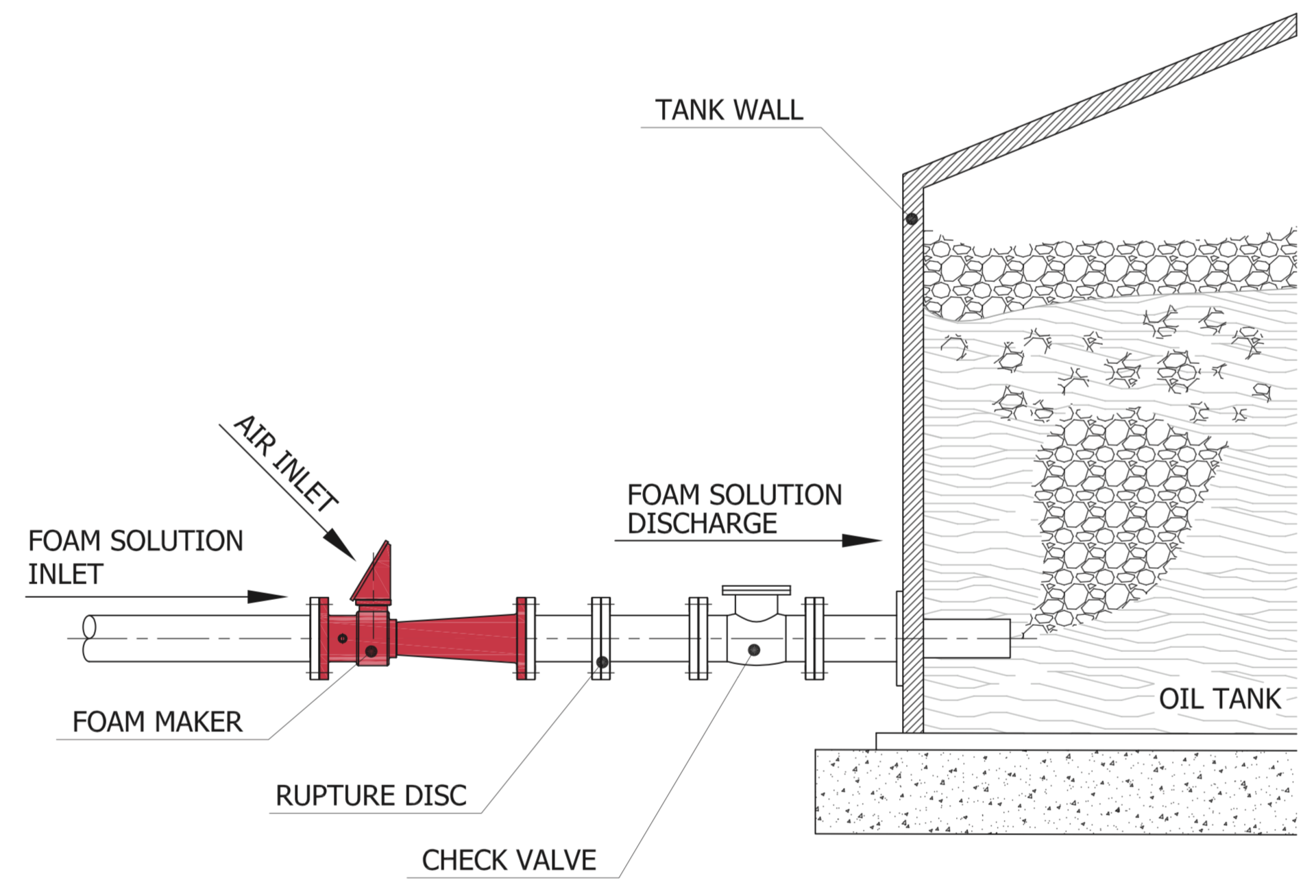

It is fixed to a foam fire-fighting line of oil storage tank and generates low-expansion air bubbles in case of fire. It discharges to the lower part of the tank to block and extinguish fire by forming foam film on the oil surface. It is low-expansion foaming equipment used in the sub-surface injection system foam equipment.

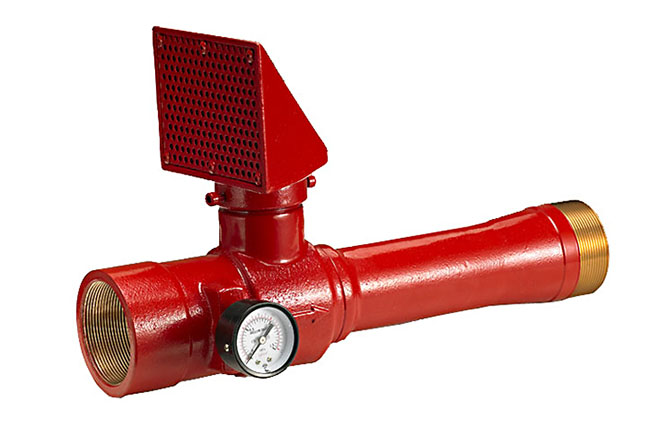

Screw Type SL-FM-10 ~ 30
Size : Inlet : PT 2-1/2”(F), Outlet : PT 2-1/2”(M)
Material : Bronze
Painting : Red or Yellow

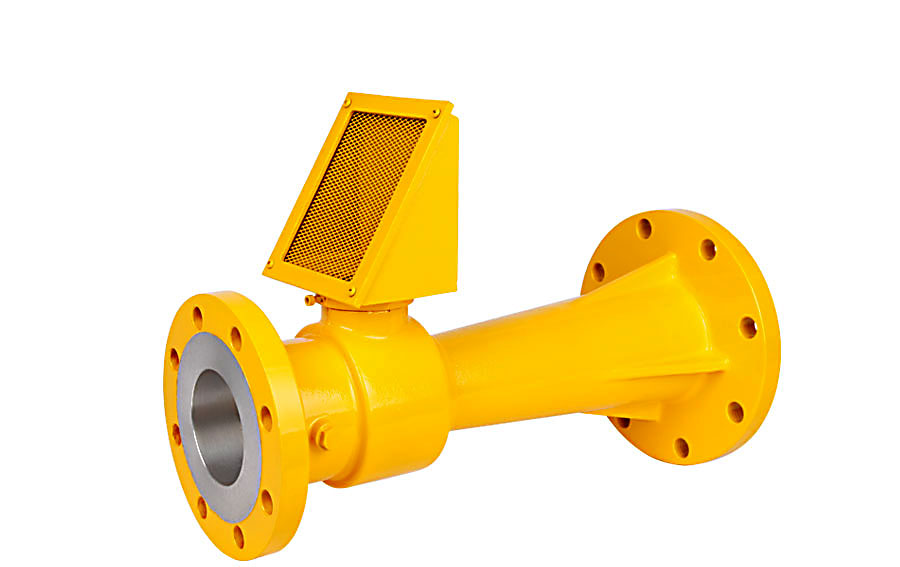

Flange Type SL-FM-35 ~ 50
Size : Inlet : ANS I#150 4” R.F
Outlet : ANSI #150 4” or 6” R.F
Material : Aluminum
Painting : Red or Yellow
FOAM MAKER | |||
| Model | Inlet & Oute size | Flow Rate (LPM @0.35MPa) | Remarks |
| SL-FM-10 | PT 2-1/2” | 380 | |
| SL-FM-15 | 570 | ||
| SL-FM-20 | 760 | ||
| SL-FM-25 | 950 | ||
| SL-FM-30 | 1140 | ||
| SL-FM-35 | ANSI #150 | 1130 | |
| SL-FM-40 | 4” RF FLG. | 1520 | |
| SL-FM-45 | 1700 | ||
| SL-FM-50 | 1900 | ||

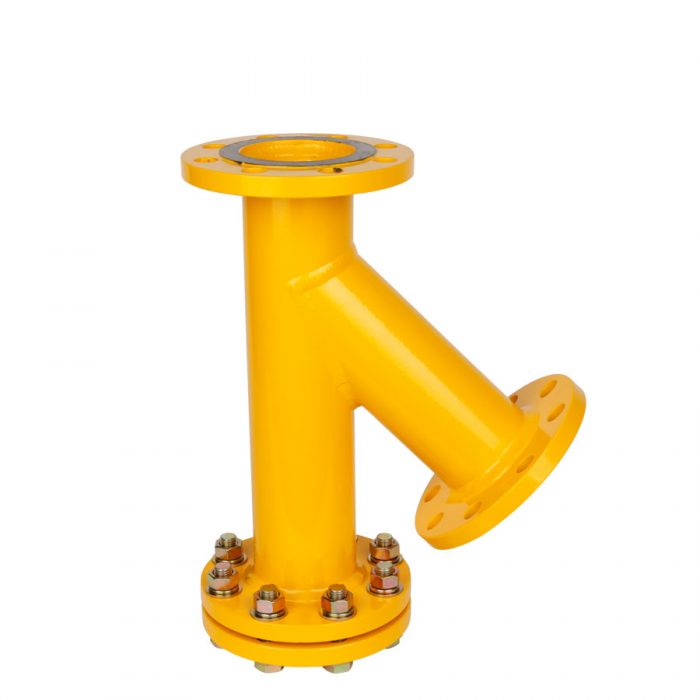

RISER STRAINER (SL-59RS)
It is a filtration device for preventing foreign matter from entering, which is installed in the lower part of the piping of the foam chamber fire extinguishing system. Foreign substances such as sand, rust and metal impurities are filtered by the built-in metal screen and accumulated at the bottom of the outer part of the screen. And foreign substances generated by corrosion inside the pipe connected to the foam chamber are accumulated at the bottom of the inner part of the screen, thereby preventing degradation due to foreign substances when discharging foam. Re-assembling is also easy after removing foreign materials by detaching the lower cover flange.
RISER STRAINER (SL-59RS) | |||
| Model | Size | Length | Remarks |
| SL-59RS-1.5 | 1-1/2” | 300 | |
| SL-59RS-2 | 2” | 325 | |
| SL-59RS-2.5 | 2-1/2” | 360 | |
| SL-59RS-3 | 3” | 395 | |
| SL-59RS-4 | 4” | 440 | |
| SL-59RS-5 | 5” | 500 | |
| SL-59RS-6 | 6” | 580 | |

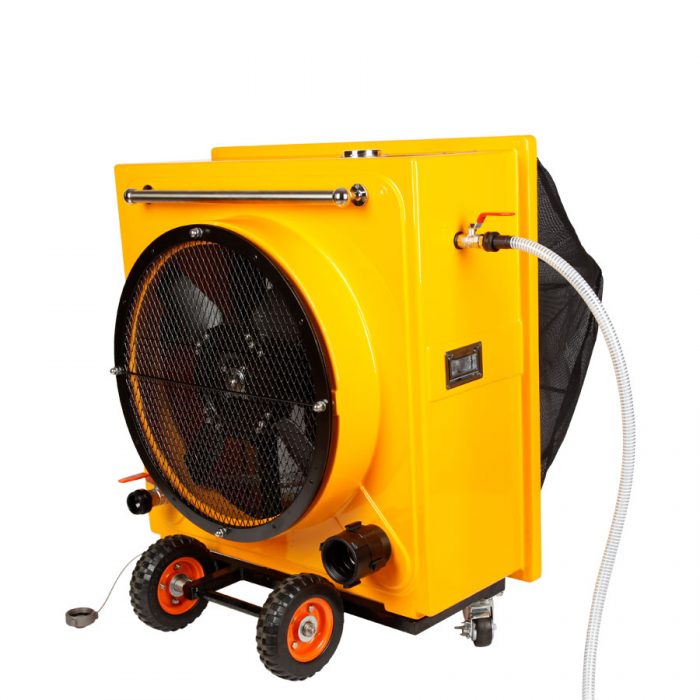

HIGH EXPANSION FOAM GENERATOR
(High-expansion generator with a built-in mixer)
It is a high expansion generator which can make high expansion foam at least 500 times in volume. As it is equipped with a mixer, it is possible to inhale the foam liquid itself. The rotating force of the blowing fan by the built-in turbine generates strong wind speed, so that the expansion foam can be pushed out at a high speed, sending the foam away quickly when attaching a foam discharging tube. It has a function to exhaust fume such as toxic gas in a confined area with a built-in by-pass valve and a nozzle shutoff valve, and movable-type with wheels and fixed-type products are also available.
Features
1. It is hydraulic drive equipment, which needs no separate operating system.
2. It has a function of self-inhalation and mixing of the foaming agent.
3. It has an exhaustion function for removing toxic gas with by-pass function.
4. It is light and strong and easy to move.
5. The outer body is made of FRP and the inner parts are made of bronze.
High Expansion Foam Generator | ||||||
| Model | Size (W x H x D) | Flow Rate (LPM @0.4MPa) | Foam Expansion Ratio | Material | Remarks | |
| SL-31-3 | 885 x 985 x 435 | 190 | 500 Times | FRP & Bronze | Portable | |
| SL-31-3F | 190 | 500 Times | Fixed | |||
| SL-31-3S | 190 | 500 Times | Exhaustion/ movable | Including an exhaustion duct | ||
