In this room, you can see various special purpose nozzle such as Non-Reaction nozzle, Water-Wall nozzle, Cellar nozzle, Piercing applicator and Water-Wall hose.

Non-reaction nozzle is designed to eliminate reaction force by offsetting reaction force and it’s resistance force. By eliminating reaction force, nozzle gives easier and better control to fire fighters during fire operation. Various types of replaceable nozzles are

available.

Cellar Nozzle is used to attack fire at hard to reach place like basement, etc. Ball bearing revolving action with rigid chrome plated bronze base.

Water Curtain Nozzles prevent spreading of fire to adjacent tanks or sensitive equipment blocking radiant heat and flying sparks. Connected to fire hoses or fire line, the water hits against the semicircle shaped plate and makes water wall.

WATER CURTAIN HOSE Water Curtain Hoses prevent spreading of fire to adjacent tanks or sensitive equipment blocking radiant heat and flying sparks. Connected to fire hydrant or fire truck, water sprays through nozzles on the fire hose. The length of the water curtain hoses are 5m or 10m or 15m can be applied round or cornered area. Spray angle can be adjusted 25 deg. both side for more effective fire blocking and minimize wind influence. Hard anodized aluminium connectors are light weight and corrosion resistant. Leg under connector hold still hoses during operation.
Model	SL-110H-D6505-2	SL-110H-D6510-2	SL-110H-D6516-2	Remarks
Length	5 meter	10 meter	15 meter
Inlet	NH 2-1/2" Male x NH 2-1/2" Female
Numbers of nozzle	10 pieces	20 pieces	30 pieces
Test pressure	7 Bar
Material	Hose-Duraliner or Rubber
Flow @7Bar	850 LPM	1580 LPM	2500 LPM
Effective reach	Approx. 15 meter height
Weight	6.5 kg	9.0 kg	11.3 kg

Model	Size	Weight (kg)	Flow Rate @0.7 Mpa	Water Wall	Remarks
				Width/Height

SL-110	1-1/2" NH Female	3.8	400 LPM	15 m / 6 m	Bronze Ni.Cr. Plated

SL-110A	2-1/2" NH female	5.8		16 m / 7 m

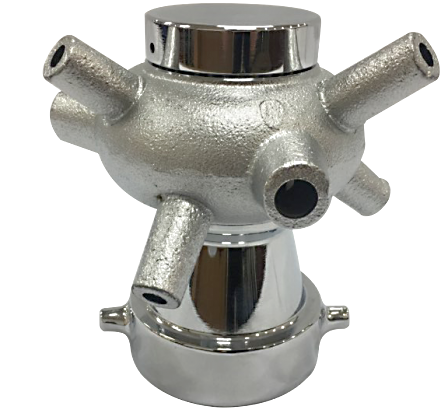

Cellar Nozzle
Model	SL-69CNA	SL-69CNC	Remarks
Size	NH 2-1/2"	For 2-1/2"
Flow rate @0.7MPa	1060 LPM
Length	150 mm	Ø180 x 200
Weight (kg)	2.6	3.8
Material	Bronze	Carbon steel
Remarks	9 outlet	Nozzle Cage

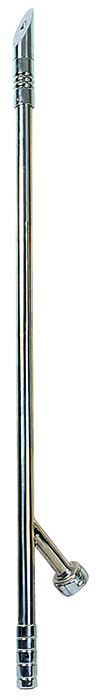

Piercing Applicator
Model	SL-70	SL-70B (c/w BALL VALVE)
Size	NH 1-1/2"	NH 1-1/2"
Flow rate @0.7MPa	360 LPM	360 LPM
Length	1300 mm	1300 mm
Weight	5.3 kg	6.8 kg
Material	Stainless steel	Stainless steel
Remarks	Stream Flow Type

SL-110

SL-110A

MODEL SL-79MPA-S

MODEL SL-79MPA-VN

MODEL SL-79MP-S

MODEL SL-79MP-VN
